Nothing, nothing, nothing flies like Senior Telemaster! Of course, this enthusiastic exclamation is advertising, but it should be sincere as well, even more than only a little.

Telemaster was likely designed by Karl-Heinz Denzin, a well-known German model designer. The rights on the model had Alexander Engel, who produced it in his own factory. Later, he gave license to Jim Martin, owner of HobbyLobby and the model was redesigned and produced by the well-known Joe Bridi.

Originally there were three sizes, the "standard" Telemaster, Senior Telemaster and Junior Telemaster. They had 1.8 m, 2.4 m, and 1.24 m wing span, giving the nice round numbers of about 6 ft, 8 ft, and 4 ft in Imperial units. Today there are also a Mini and Micro Telemaster and even the 12 ft Giant Telemaster.

Due to their high-lift airfoils, Telemaster and Telemaster-Senior are very well suited for special tasks like banner tow, leaflet or parachute dropping, aerial photography, etc., but they are suited only for rather simple aerobatics.The Telemaster became famous in Europe as one of the original planes was used to
carry a line across a chasm for building a bridge. First a small line was carried across and once done, larger and larger lines were pulled across. This is the claim to fame for the Sr. Telemaster. Probably the first industrial use for a model airplane.

This aircraft design has been around for a number of years in Germany, and has been
used to string telephone lines across deep ravines, which task would otherwise require
the use of a full-size helicopter

This model is - as far as is known - the first workhorse of the air and was rigged for banner and glider tow, photography, as well as candy or skydiver dropping. In the USA, the model even became famous because it helped running a power line across a chasm and saved hefty helicopter expenses.

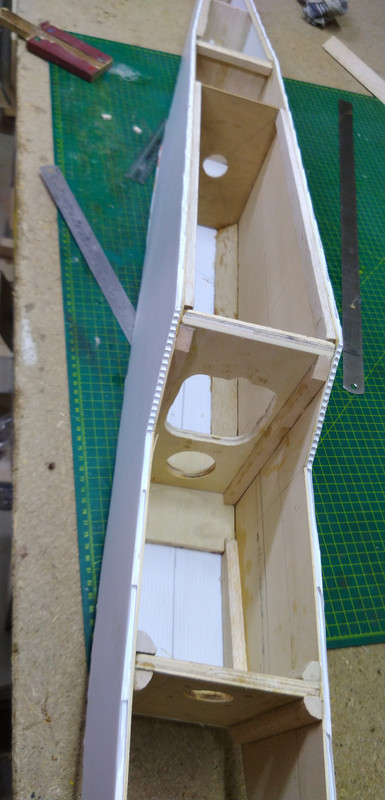

Fuselage build

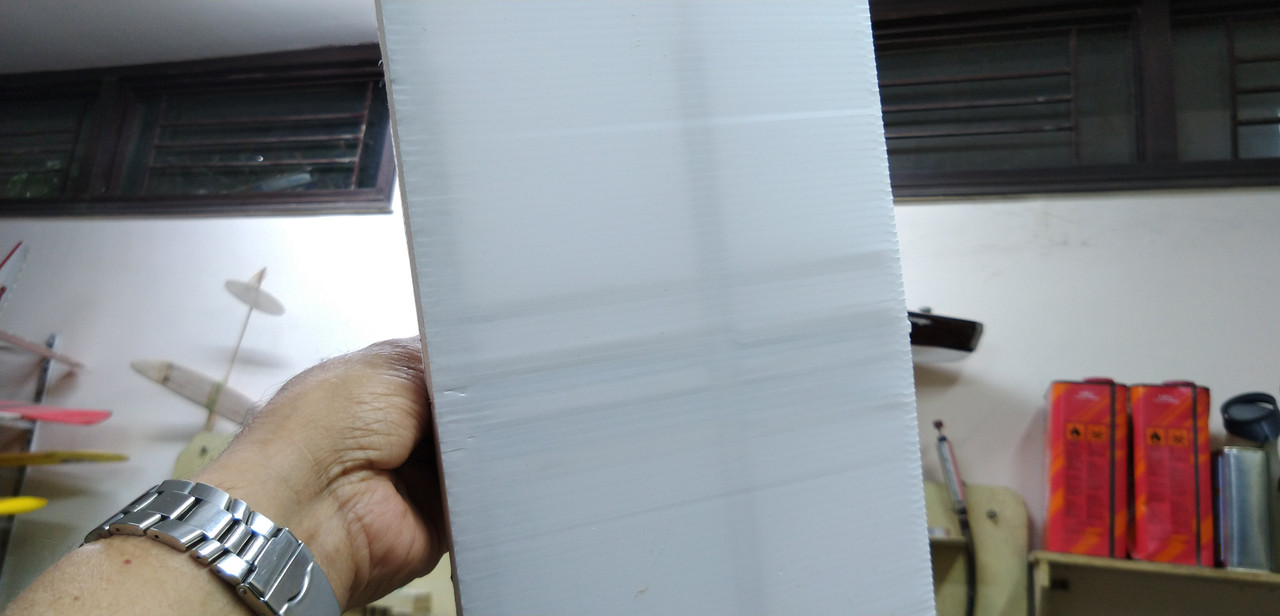

4 mm corro used, with 1.5 mm light ply. Front former and firewall are 8 mm Poplar ply, 2nd former 3 mm ply, all others 4 mm balsa. Triangular stock craved out and used for reinforcement

The table is 8 feet long

The history of this model was quite fun to read!!
Looking forward to the build sir!

Quote from: asperised on July 04, 2020, 05:34:27 PM
The history of this model was quite fun to read!!
Looking forward to the build sir!

Glad you enjoyed it!

Hoping for the best here. Weight is a challenge

plans available sir?

Plenty available. Outerzone, Aerofred ++

Sent from my motorola one power using Tapatalk

Quote from: sanjayrai55 on July 04, 2020, 05:37:36 PM
Weight is a challenge

Sirji,
Weight is the last thing to worry about.
The original balsa one was under 6 lbs (2700gm)
I doubt if your Coro version will exceed 5kg (11 lbs)
It has nearly 10 sqft wing area, and can surely carry 2 lbs/sqft loading.
So you have 3-4 kg of spare capacity for payload!
BTW, what engine? 60?

Krunal has just built a lovely 10ft span Bird of Time airframe. I think he's still experimenting with the covering materials I sent him!
Now you're building an 8ft span Sr Telemaster.

And here I am, building another 24" Indore Bipe for the Guy asking for Telemaster plans...
Wonder when I'll grow up and build real model airplanes

Regards

The performance of the original @ 2700 gms was superior to the performance of the RCM/Joe Bridi? Hobby Lobby version, which would got to 4500+ gms. That's why I'm trying to make it as light as possible, though I doubt I'll be going below 4 Kg

Planning to use a OS 55 AX with 12*6 prop for now. Let's see how it goes

Testing tank fitment

Tail feathers

The vertical stab is from 6 mm solid balsa

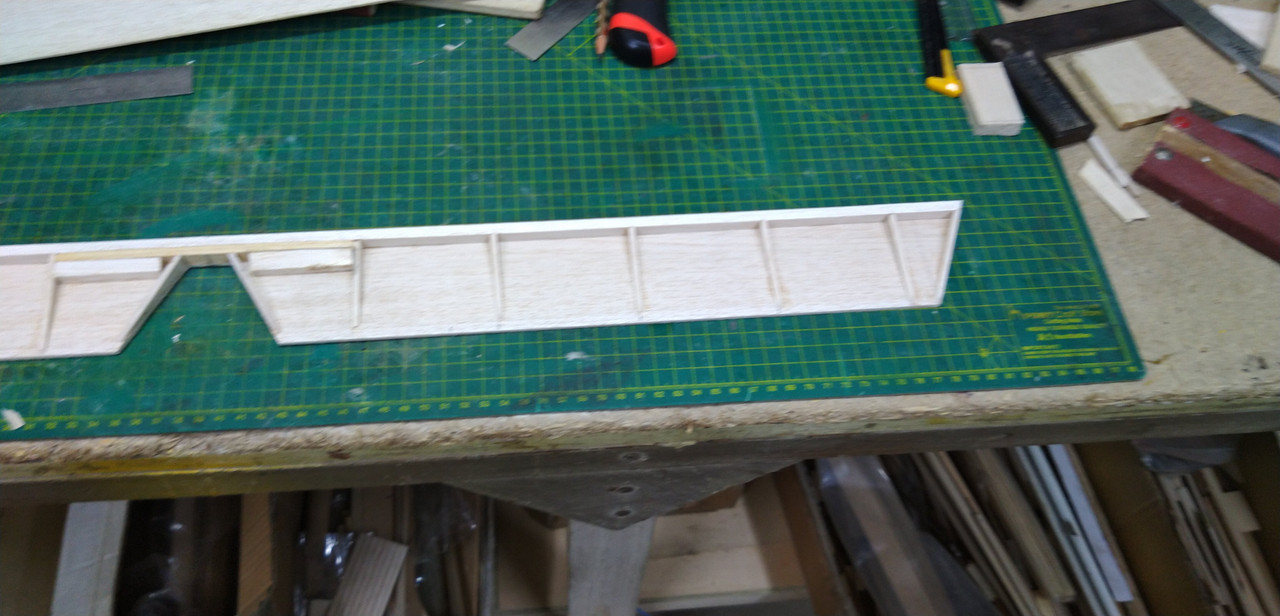

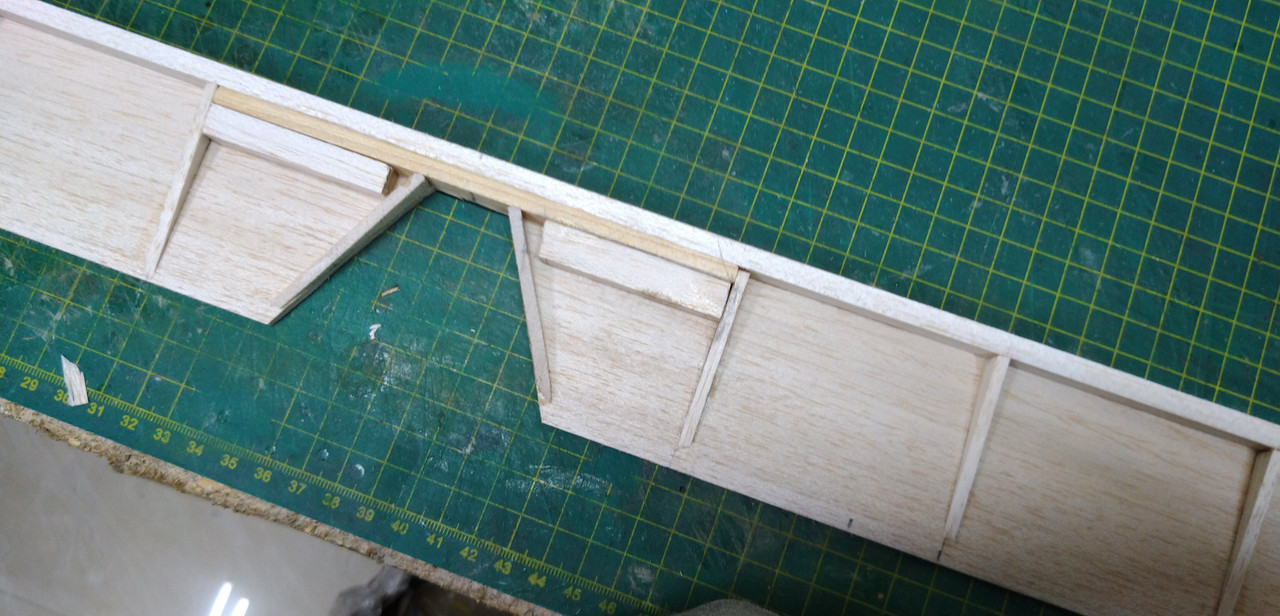

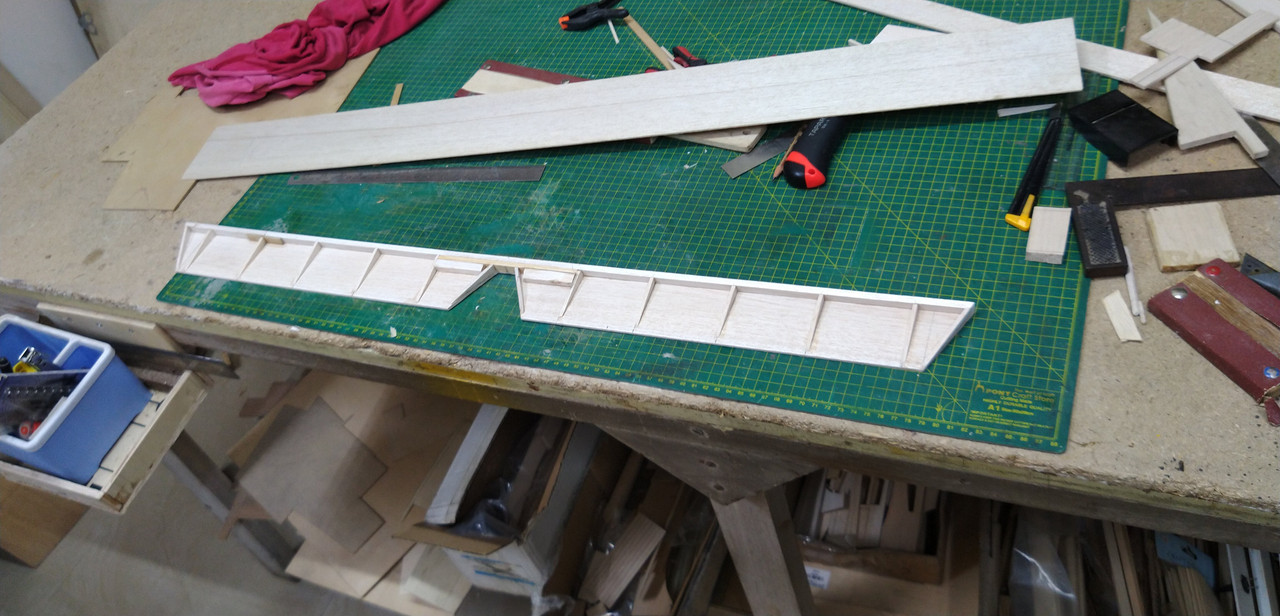

The horizontal "lifting" stabilizer is fabricated from balsa, and corro


Sent from my motorola one power using Tapatalk

The vertical stab slots into the provision made in the horizontal, and will be epoxied in later

Sent from my motorola one power using Tapatalk

Neat and clean build as always!
Waiting to see it fly!

  Prabal

Rai Sir,

Looking at your build on Senior Telemaster, I could not stop myself writing on your thread.  It freshened up my memories about a Balsa Senior Telemaster I had in my possession 15 years back and one line that holds true about this model is

"Nothing flies like a Telemaster".

It is a dream machine.

Telemaster is a sheer pleasure to fly and watch.  It is the best trainer that has ever been produced.    It has good glide ratio and I was never able to land it in single attempt.  Just at 4 to 5 ft height, it used cover the whole ground. It simply refused to land even on idle. Spoilers were badly needed.

I will eagerly watch this thread of a creation by a master builder as it takes shape of a Master of flying.

Wish you a good luck on your build and eagerly await flight vedeo.

Thanks so much Dreamliner

Stabilizer

Seat

Starting to Appreciate the size of this aircraft!!

Elevator
