Tail assembly glued on to the fuselage



One more super build coming out from sanjay sir

Thanks Shirsa and Manoj

Been a bit buy. But finally started on the wing

Very nice work sir. Is this 6mm ply?

Thanks. No, actually it's hard wood, what they call locally "margin"

About 6 mm X 50 mm. Small layer of 1.5 mm balsa on top

Good build Sir, I have built many version of the telemaster.

You should add the Aileron servo ply mount before folding the wing.

regds

good going sir

Thank you Sandeep and Gaurang

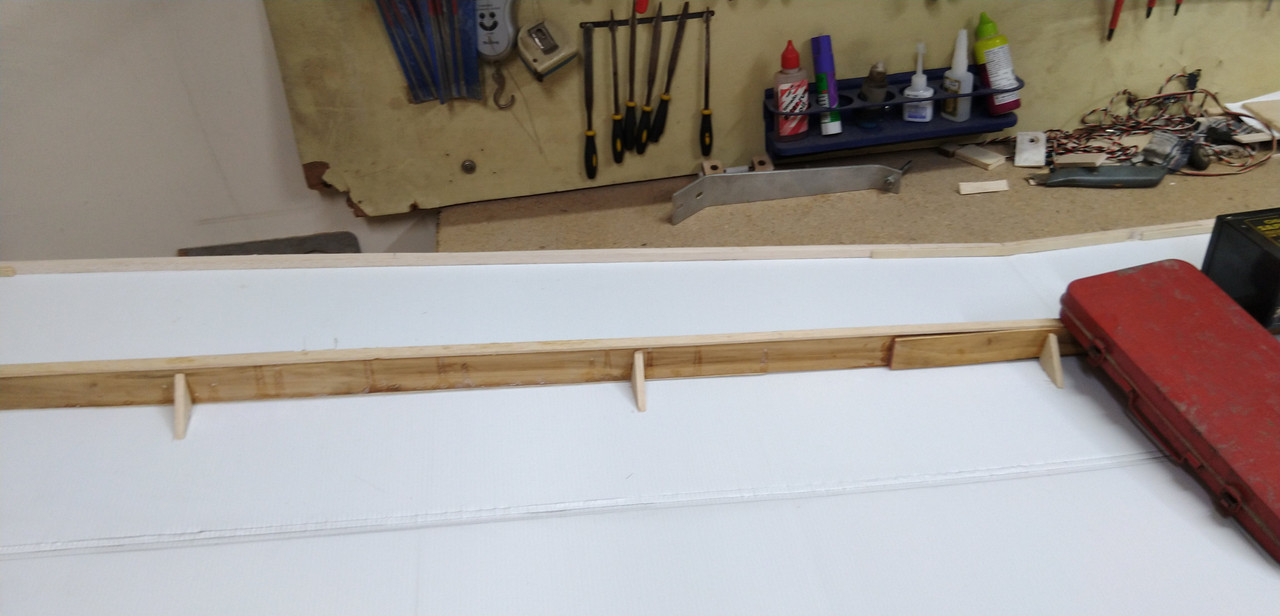

Ready for gluing an folding

Right wing folded and glued

You can see the cutout and reinforcement for both the Aileron and Flap

Wing folded over

Sent from my motorola one power using Tapatalk

whats the total weight of the wings sir?

It's 1100 gms. Without servos which will be 200 + ~ 100 for horns pushrods etc. Plus the weight of Ailerons and Flaps which I still have to make

Sent from my motorola one power using Tapatalk

sir as ur excellent in this job

i would to see linakage stopper and its push rod in this plane

kp

Quote from: kamalsahai on July 26, 2020, 09:56:09 PM
sir as ur excellent in this job

i would to see linakage stopper and its push rod in this plane

kp

OK, will take some close up shots when I install them

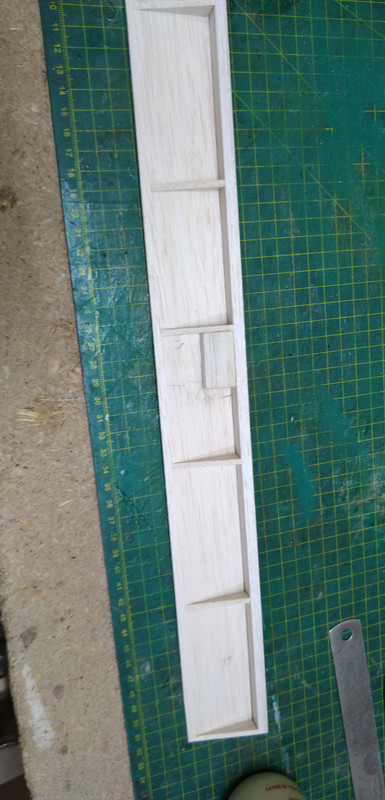

Started on the Flaps

Reinforcement (Balsa block) at Horn location
