Strips of balsa are fitted to make a base for the hinge to fit



These are then rounded as the hinge will be in the centre

Wingtip is now fabricated

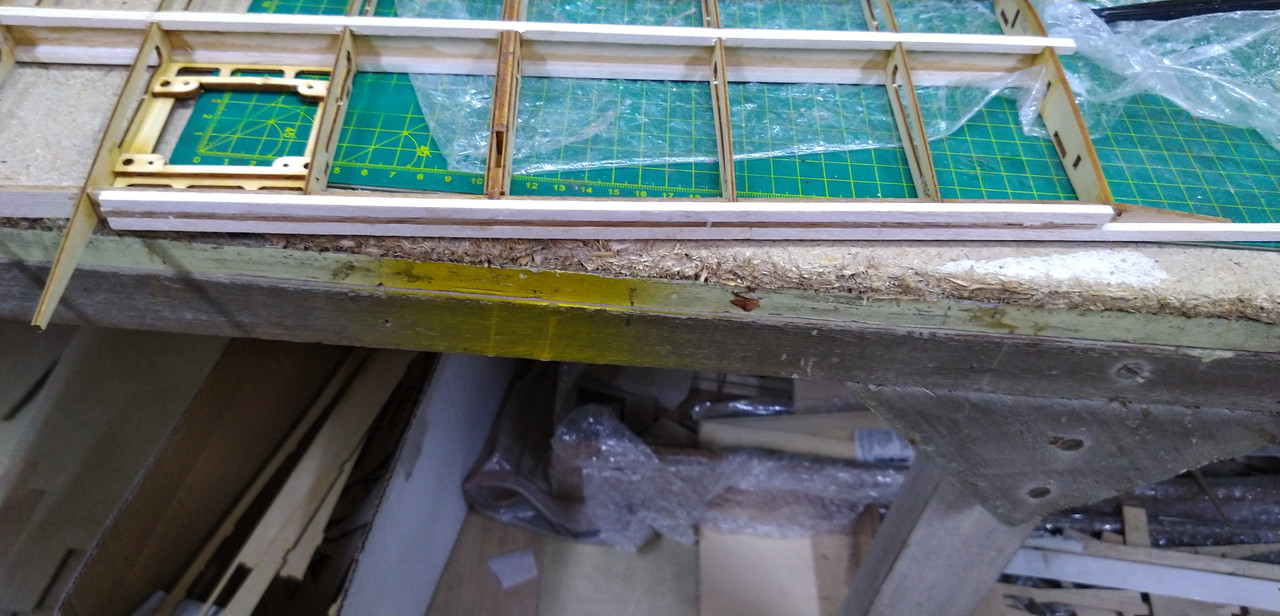

Trailing Edge glued in

Fabrication of Servo Tray

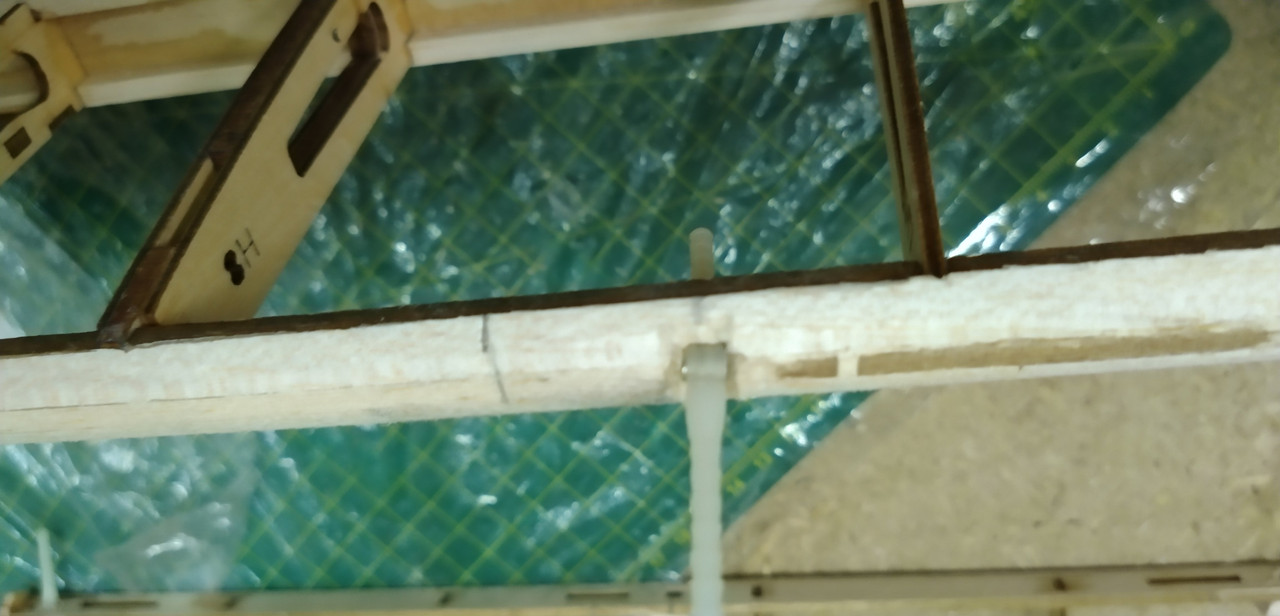

Hinge Points fitted, will be glued in after covering; a dab of Vaseline must be put on the hinge. CA glue to be avoided as it makes the plastic brittle

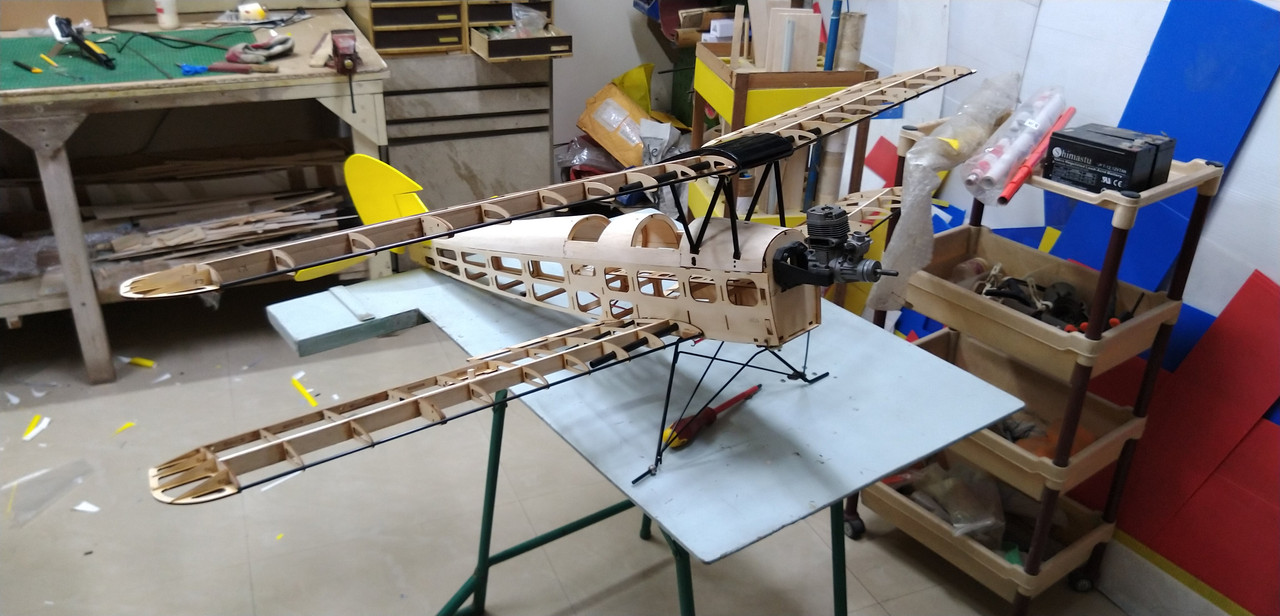

Trial fit of wings - that's  one biggg model

Lovely as usual.
Sirji, tips ulte hain to kya?
Only flyingboxcar will notice, and get the shivers...

Quote from: K K Iyer on November 29, 2019, 06:55:19 PM
Lovely as usual.
Sirji, tips ulte hain to kya?
Only flyingboxcar will notice, and get the shivers...



Dogfight challenge

Quote from: K K Iyer on November 29, 2019, 10:59:24 PM
Dogfight challenge

Don't want to shoot down your retirement benefits

Cut the cowl and fitted it

The upper and lower wing halves are slid into carbon fibre tubes of 6 mm & 10 mm. These are supposed to be held in place by the rigging and interplane struts

I'm not entirely comfortable with just the rigging. So I epoxied hardwood tabs and screwed in hooks, to pull the 2 wing halves together with rubber bands at the wing bottom

Upper wing



Lower wing

Test fit

Build continues

Aileron servo fitment

Sent from my motorola one power using Tapatalk

Fuselage assembled

Sent from my motorola one power using Tapatalk

Covering complete....not quite

Sent from my motorola one power using Tapatalk

Half an aileron left, and the covering film got over

Sent from my motorola one power using Tapatalk

Nice

Quote from: wingmanbunty on December 20, 2019, 01:21:52 PM
Nice

Thank you Bunty

Completed the build
